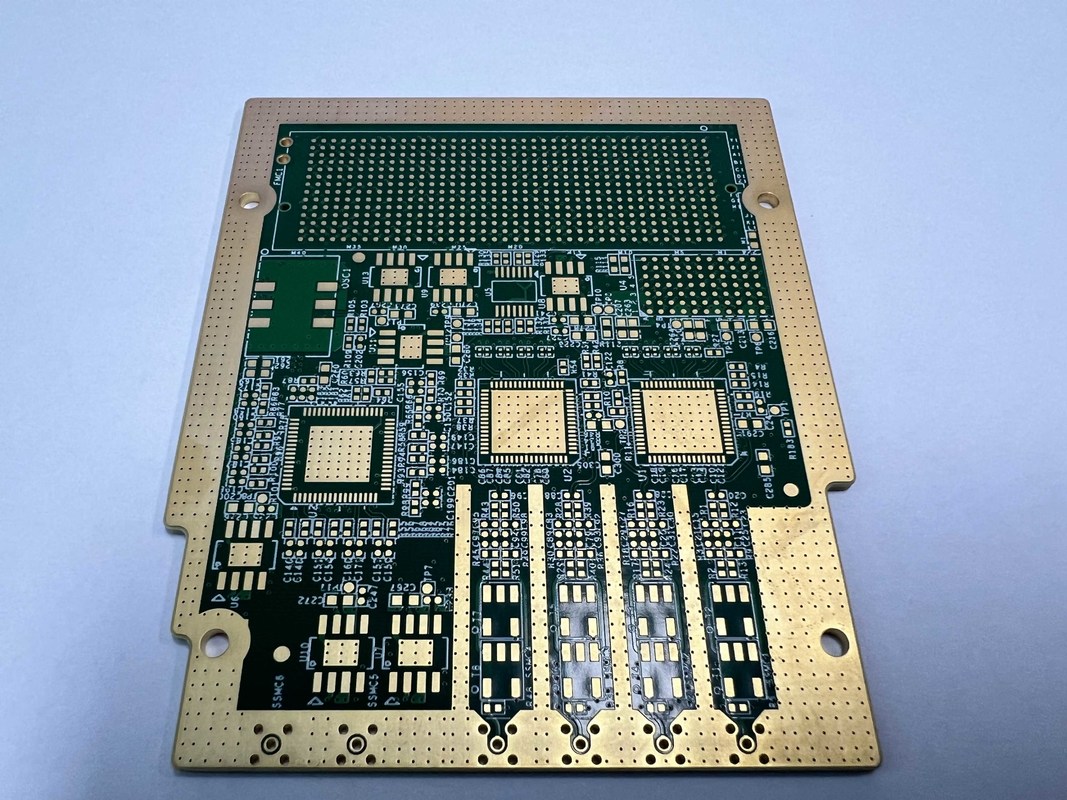

1.6mm Thickness HDI PCB Board with High Density Interconnector and 1oz Finished Copper Thickness

Product Description:

When it comes to advanced circuit board technology, our HDI PCB Board stands out as a top-tier product designed for high-speed applications. With a focus on cutting-edge features and superior performance, this HDI PCB Board is the ideal choice for demanding projects that require precision and reliability.

Aspect Ratio: The HDI PCB Board boasts an impressive aspect ratio of 10:1, ensuring efficient signal transmission and optimal performance in high-speed applications. This aspect ratio is specifically tailored to meet the needs of modern electronics, providing a competitive edge in the industry.

Min. Solder Mask Bridge: With a minimum solder mask bridge of 0.075mm, this HDI PCB Board offers exceptional soldering capabilities and precise connections. The ultra-thin solder mask bridge enhances the overall quality of the board and ensures reliable performance in critical applications.

Glass Epoxy: The HDI PCB Board is constructed using high-quality RO4350B glass epoxy material with a Tg of 280℃ and an Er value of less than 3.48, sourced from industry-leading manufacturer Rogers Corp. This premium material ensures superior thermal stability, excellent signal integrity, and enhanced durability, making it an ideal choice for high-speed PCB applications.

Mini Holes: The HDI PCB Board features mini holes with a diameter as small as 0.1mm, allowing for intricate and compact designs without compromising on performance. These mini holes are strategically placed to optimize the routing of traces and vias, resulting in efficient signal paths and reduced signal interference.

Vias Aspect Ratio: The vias on the HDI PCB Board have an aspect ratio of 16:1, enabling seamless and reliable connections between different layers of the board. This high aspect ratio ensures efficient signal transmission and minimal signal loss, making the board suitable for complex and high-speed circuit designs.

Overall, our HDI PCB Board is the epitome of advanced HDI PCB manufacturing, offering unmatched quality, performance, and reliability for high-speed applications. Whether you are working on a complex electronic project or a cutting-edge technology application, this HDI PCB Board is the perfect choice to meet your requirements and exceed your expectations.

Features:

• Product Name: HDI PCB Board
• Surface Mount Technology: Available
• Vias Aspect Ratio: 16:1
• Glass Epoxy: RO4350B Tg280℃, Er<3.48, Rogers Corp.
• Surface Finish: HASL, ENIG, OSP, Immersion Silver, Immersion Tin, Etc.
• Pcb Assembly Process: SMT THT DIP SMT PCB Assembly

Technical Parameters:

Applications:

The High Density Interconnector (HDI) PCB Board is a versatile product that caters to a wide range of application occasions and scenarios due to its unique features and specifications.

With copper thickness ranging from 0.5oz to 6oz, the HDI PCB Board is well-suited for applications that require high conductivity and durability. The varying copper thickness options make it adaptable to different project requirements, ensuring optimal performance in diverse environments.

One of the key features of the HDI PCB Board is its compatibility with Surface Mount Technology (SMT). This makes it ideal for use in electronic devices where space optimization is crucial. The ability to accommodate SMT enhances the board's versatility and makes it suitable for compact designs and high-density layouts.

The Aspect Ratio of 10:1 further enhances the capabilities of the HDI PCB Board, allowing for intricate and complex circuit designs. This makes it a preferred choice for applications that demand a high level of precision and miniaturization.

Another notable feature of the HDI PCB Board is the Immersion Silver finish, which provides excellent conductivity and corrosion resistance. This makes the board suitable for applications where reliability and performance are paramount.

The High Density Interconnector (HDI) PCB Board is well-suited for a wide range of scenarios, including but not limited to:

• Mobile devices: The compact size and high-density design of the HDI PCB make it an excellent choice for smartphones, tablets, and wearables.
• Medical equipment: The precision and reliability of the HDI PCB Board make it suitable for medical devices that require high-performance electronics.
• Aerospace and defense: The durability and conductivity of the HDI PCB make it ideal for applications in aerospace and defense industries where ruggedness is essential.
• Automotive electronics: The versatility and high conductivity of the HDI PCB Board make it a preferred choice for automotive electronics that require advanced circuitry.

In conclusion, the HDI PCB Board, with its High Density Interconnector technology, is a versatile and reliable solution for a wide range of application occasions and scenarios. Its unique features and specifications make it a preferred choice for industries that demand high-performance electronics in compact and complex designs.

Customization:

Product Customization Services for High Density PCB - High Speed PCB Board - HDI PCB Board

Finished Copper Thickness: 1oz

Aspect Ratio: 10:1

Pcb Assembly Process: SMT THT DIP SMT PCB Assembly

Min. Solder Mask Bridge: 0.075mm

VIP Process: Yes
